Studio (Visual Debugging)

Studio provides a Web interface for real-time visualization of Agent execution processes, supporting interactive debugging and message tracing.

---

Core Features

• Real-time Visualization: Web interface displays Agent reasoning and execution processes

• Interactive Input: Interact with Agent through Web UI

• Message Tracing: View complete message flow and Trace

• Multi-Run Management: Support organization and comparison of multiple experimental runs

---

Quick Start

1. Start Studio Server

Start from source code

git clone https://github.com/agentscope-ai/agentscope-studio
cd agentscope-studio
npm install
npm run dev

Install via npm

npm install -g @agentscope/studio  # or npm install @agentscope/studio
as_studio

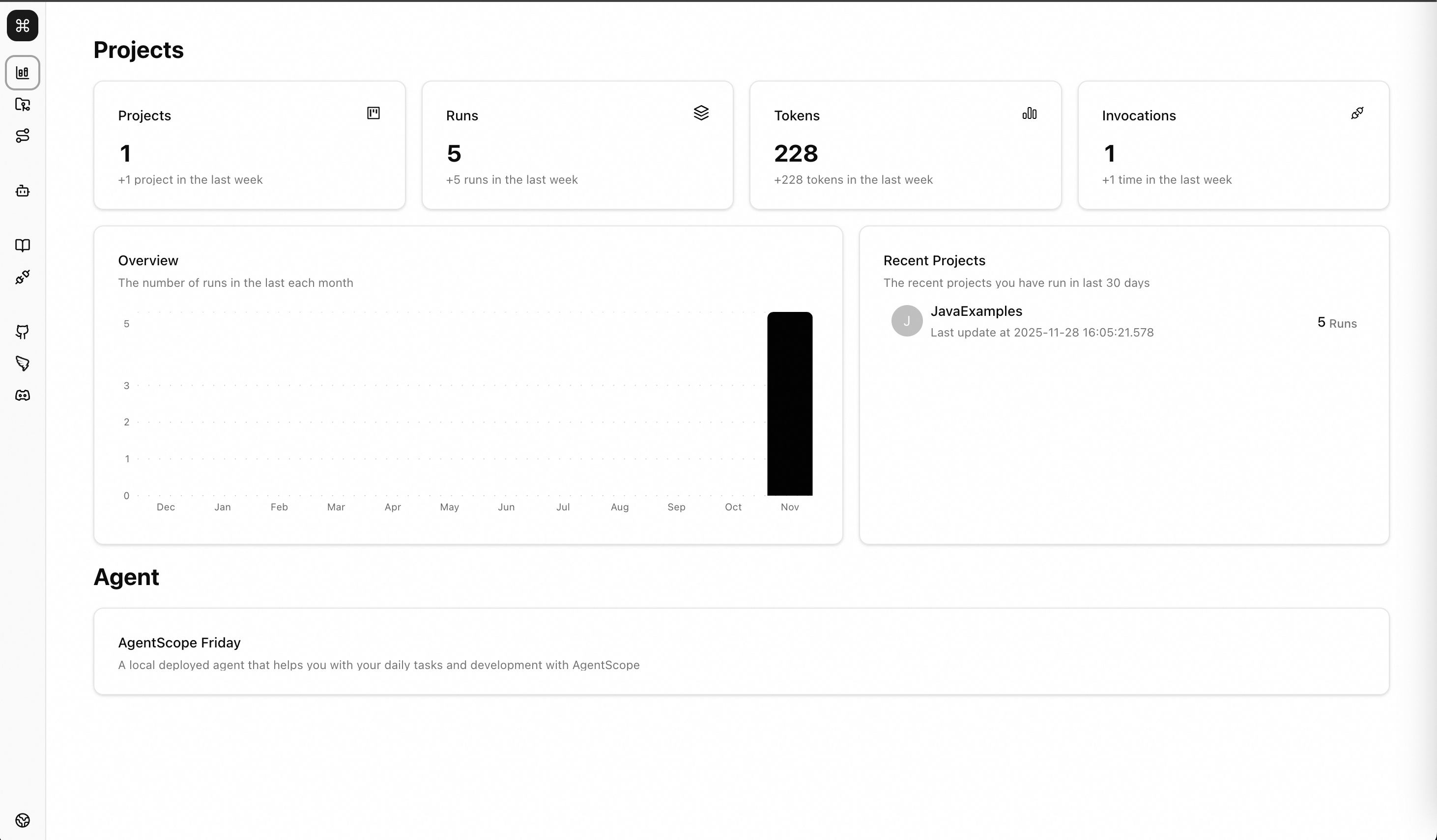

Studio will run at http://localhost:5173

2. Java Application Integration

import io.agentscope.core.studio.StudioManager;
import io.agentscope.core.studio.StudioMessageHook;
import io.agentscope.core.studio.StudioUserAgent;

// Initialize Studio connection
StudioManager.init()
    .studioUrl("http://localhost:3000")
    .project("MyProject")
    .runName("demo_" + System.currentTimeMillis())
    .initialize()
    .block();

// Create Agent with Hook
ReActAgent agent = ReActAgent.builder()
    .name("Assistant")
    .model(model)
    .hook(new StudioMessageHook(StudioManager.getClient()))
    .build();

// Agent messages automatically sent to Studio
agent.call(msg).block();

// Clean up resources
StudioManager.shutdown();

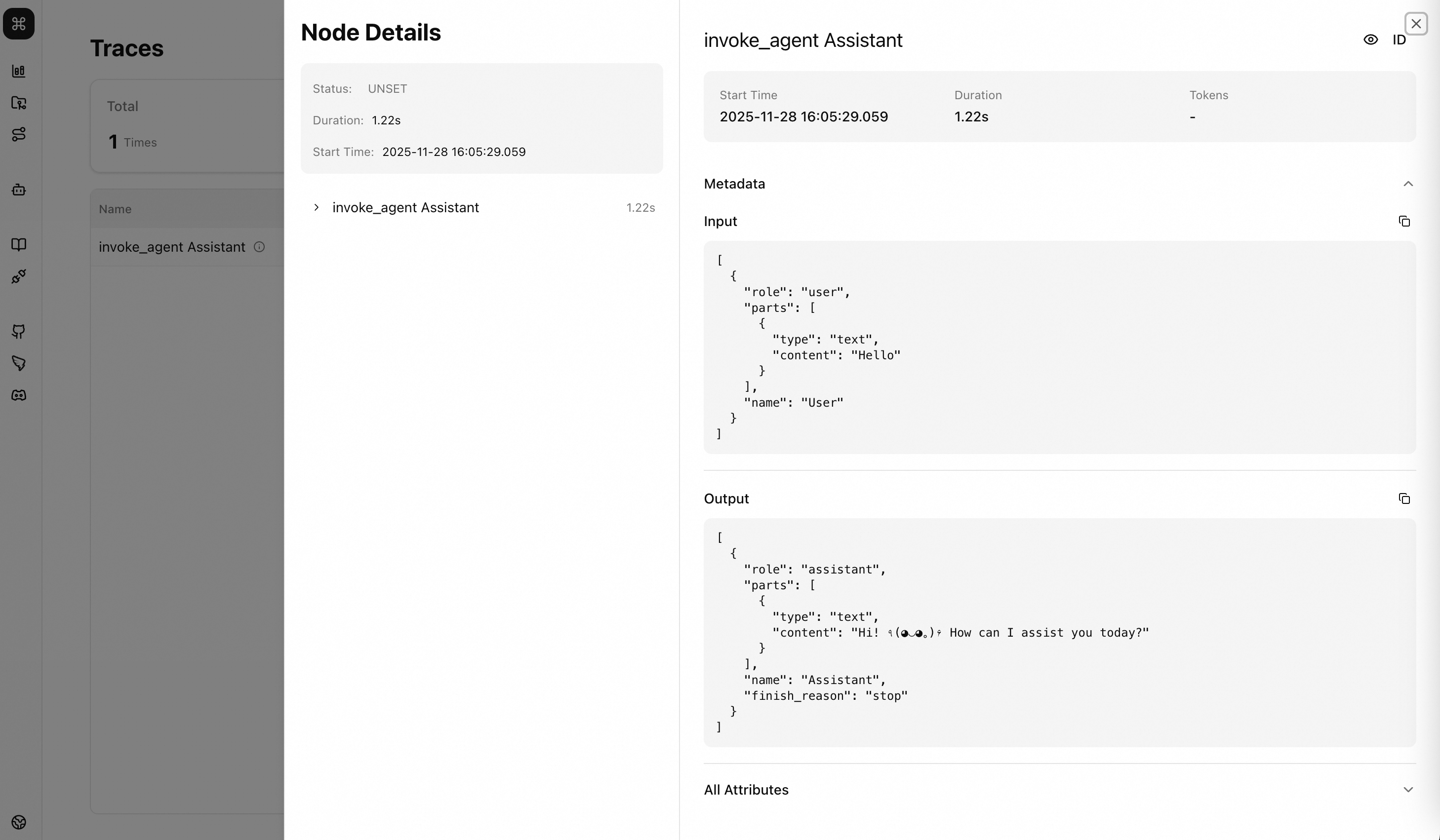

3. View Trace Information in AgentScope Studio

StudioUserAgent

Receive user input through Web UI.

import io.agentscope.core.studio.StudioUserAgent;

// Create user Agent
StudioUserAgent user = StudioUserAgent.builder()
    .name("User")
    .studioClient(StudioManager.getClient())
    .webSocketClient(StudioManager.getWebSocketClient())
    .build();

// Wait for Web UI user input
Msg userInput = user.call(null).block();

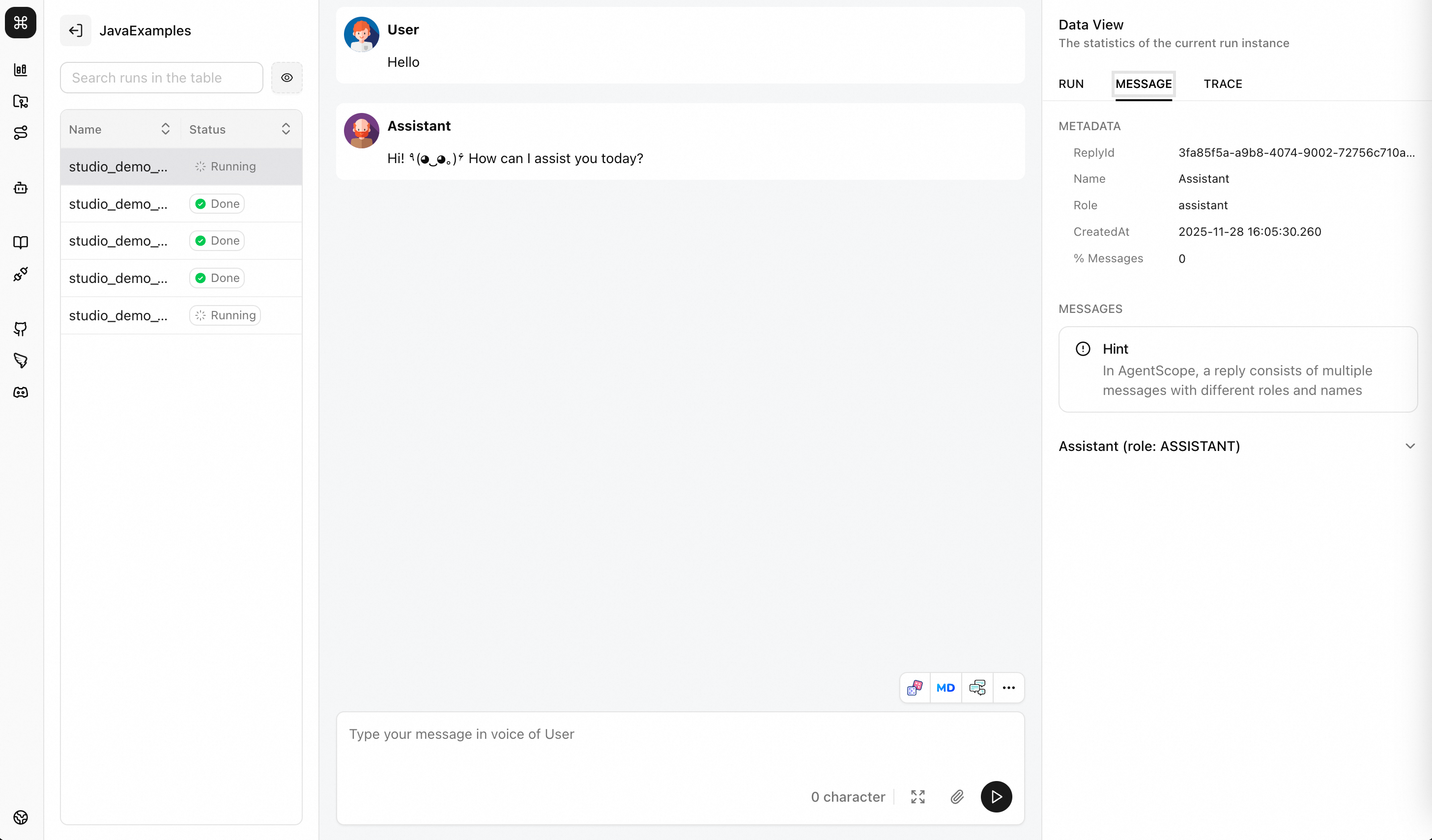

You can find the Project in Studio’s Projects and debug through the WebUI

Conversation Loop

Msg msg = null;
while (true) {
    // Get user input from Web UI
    msg = user.call(msg).block();

    if (msg == null || "exit".equalsIgnoreCase(msg.getTextContent())) {
        break;
    }

    // Agent processes
    msg = agent.call(msg).block();
}

---

Complete Example

package io.agentscope.examples;

import io.agentscope.core.ReActAgent;
import io.agentscope.core.message.Msg;
import io.agentscope.core.model.DashScopeChatModel;
import io.agentscope.core.studio.StudioManager;
import io.agentscope.core.studio.StudioMessageHook;
import io.agentscope.core.studio.StudioUserAgent;

public class StudioExample {

    public static void main(String[] args) throws Exception {
        String apiKey = System.getenv("DASHSCOPE_API_KEY");

        System.out.println("Connecting to Studio at http://localhost:3000...");

        // Initialize Studio
        StudioManager.init()
            .studioUrl("http://localhost:3000")
            .project("JavaExamples")
            .runName("studio_demo_" + System.currentTimeMillis())
            .initialize()
            .block();
        System.out.println("Connected to Studio\n");

        try {
            // Create Agent (with Studio Hook)
            ReActAgent agent = ReActAgent.builder()
                .name("Assistant")
                .sysPrompt("You are a helpful AI assistant.")
                .model(DashScopeChatModel.builder()
                    .apiKey(apiKey)
                    .modelName("qwen-plus")
                    .build())
                .hook(new StudioMessageHook(StudioManager.getClient()))
                .build();

            // Create user Agent
            StudioUserAgent user = StudioUserAgent.builder()
                .name("User")
                .studioClient(StudioManager.getClient())
                .webSocketClient(StudioManager.getWebSocketClient())
                .build();

            // Conversation loop
            System.out.println("Starting conversation (type 'exit' to quit)");
            System.out.println("Open http://localhost:3000 to interact\n");

            Msg msg = null;
            int turn = 1;
            while (true) {
                System.out.println("[Turn " + turn + "] Waiting for user input...");
                msg = user.call(msg).block();

                if (msg == null || "exit".equalsIgnoreCase(msg.getTextContent())) {
                    System.out.println("\nConversation ended");
                    break;
                }

                System.out.println("[Turn " + turn + "] User: " + msg.getTextContent());
                msg = agent.call(msg).block();

                if (msg != null) {
                    System.out.println("[Turn " + turn + "] Agent: "
                        + msg.getTextContent() + "\n");
                }
                turn++;
            }

        } finally {
            System.out.println("\nShutting down...");
            StudioManager.shutdown();
            System.out.println("Done\n");
        }
    }
}

---

Advanced Usage

Manual Message Pushing

StudioClient client = StudioManager.getClient();

Msg customMsg = Msg.builder()
    .role(MsgRole.ASSISTANT)
    .content(TextBlock.builder().text("Custom message").build())
    .build();

client.pushMessage(customMsg).block();

Multi-Agent Visualization

// Add Hook to each Agent
ReActAgent agent1 = ReActAgent.builder()
    .name("Agent1")
    .hook(new StudioMessageHook(client))
    .build();

ReActAgent agent2 = ReActAgent.builder()
    .name("Agent2")
    .hook(new StudioMessageHook(client))
    .build();

// Studio will display messages from both Agents separately

---

More Resources

• Complete Example: StudioExample.java

• Studio Repository: https://github.com/agentscope-ai/agentscope-studio

• Hook Documentation: hook.md
